20.5R25 BKT EARTHMAX SR 30 177B/186A2 E-3/L-3 TL

Description

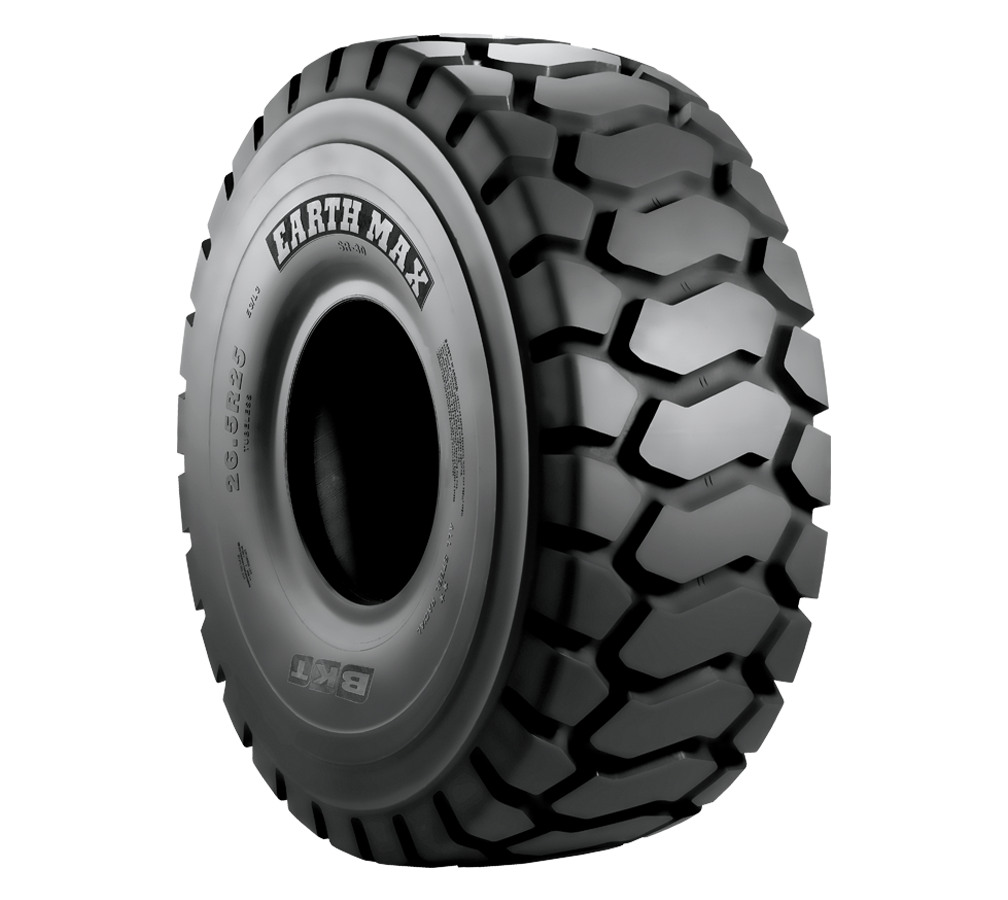

The EARTHMAX SR 30 (E-3/L-3) range of all-steel radial earthmover tyres that have been designed for use with loaders and ADT's (articulated dump trucks) working in loading, dozing and transport applications. Additional steel belts within the casing help to reinforce stability and increase puncture resistance. Durability is increased with a special cut-and-chip resistant compound and the non-directional tread pattern offers impressive traction abilities on loose and rocky surfaces making SR 30 suitable for a variety of harsh operating environments.

Features

  • All-steel radial earthmover tyres for loaders and ADTs.
  • Additional steel belts for stability and puncture resistance.
  • Cut-resistant compound.
  • Non-directional tread pattern with good traction.

Specification

Application
EARTHMOVER
Size
20.5R25
Brand
BKT
Pattern
EARTHMAX SR 30
Load/Speed Index
177B/186A2
TT/TL
TL
Construction
RADIAL
Nominal Section Width
20.5
Rim
25
TRA
E-3/L-3
Star Rating
**/*
Recommended Rim
17.00/2.0
Permitted Rim
17.00/1.7
Section Width
529 mm
Overall Diameter
1487 mm
Static Load Radius
663 mm
Rolling Circumference
4439 mm
Tread Depth
32.00 mm
Max Load (KG)/Speed (KM/H) 1
7300/50 WHEN 5.25 BAR (E-3)
Max Load (KG)/Speed (KM/H) 2
9500/10 WHEN 5.00 BAR (L-3)
Specification 1
CUT RESISTANT COMPOUND
Specification 2
ALL STEEL
Warranty
5 YEARS
