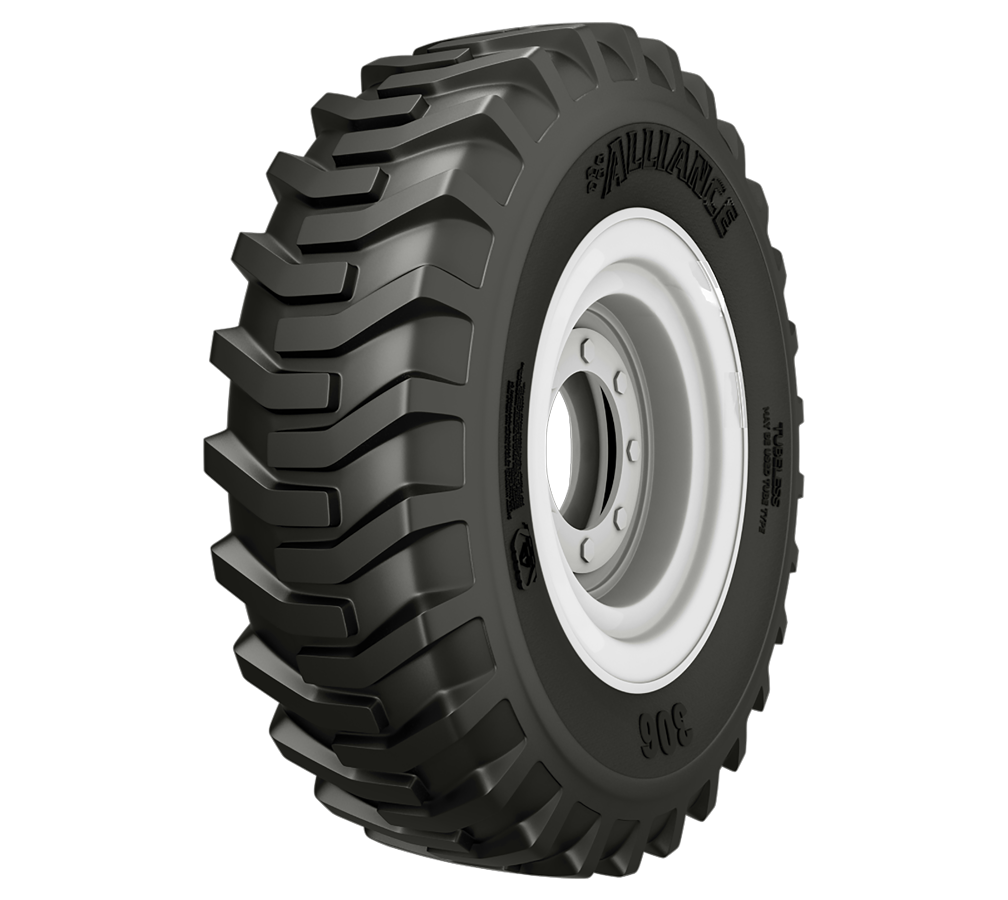

14.00-24 TG 16 PR ALLIANCE 306 153A8/178A2 G-2/L-2 TL

Description

The Alliance 306 pattern has been designed primarily for road grader and loader dozer application across a range of sizes with some sizes also suitable for Skidsteer application. An extremely tough nylon casing enables the tyre to perform under the most severe conditions and demanding terrains. An extra-thick rubber belt under the tread is married to reinforced lugs on the tread, helping to further increase the tyres robustness and durability resulting in longer tread wear.

Features

  • Bias road grader tyre covering a range of sizes.
  • Tough nylon casing for use in severe conditionsExtra-thick undertread and reinforced lugs.

Specification

Application
EARTHMOVER
Size
14.00-24 TG
Size Suffix
TRACK GRADER
Brand
ALLIANCE
Pattern
306
Load/Speed Index
153A8/178A2
Ply Rating
16
TT/TL
TL
Construction
BIAS
Nominal Section Width
14.00
Rim
24
TRA
G-2/L-2
Recommended Rim
8.00TG MAX14PR 10.00VA
Section Width
362 mm
Overall Diameter
1348 mm
Static Load Radius
617 mm
Rolling Circumference
4010 mm
Max Load (KG)/Speed (KM/H) 1
3650/40 WHEN 3.50 BAR (G-2)
Max Load (KG)/Speed (KM/H) 2
7500/10 WHEN 5.75 BAR (L-2)
